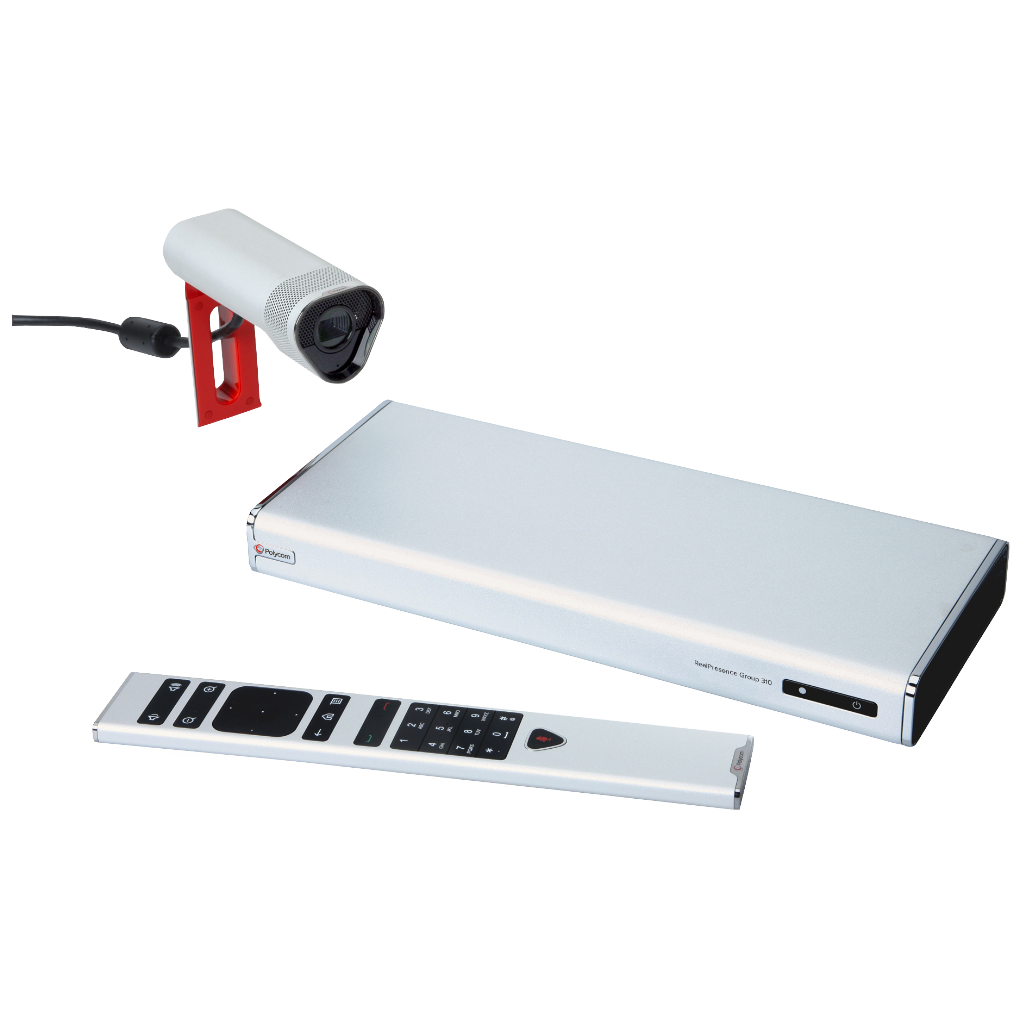

GROUP 310

RealPresence Group 310 codec
Cable bundle
Remote control
EagleEye IV 4x camera and RealPresence Group Microphone Array, or EagleEye Acoustic camera

H.261, H.263, H.264 AVC, H.264 High Profile, H.264 SVC, RTV
H.239/BFCP for content sharing
H.263 & H.264 Video error concealment

1 x HDCI
1 x HDMI 1.3
1 x VGA

2 x HDMI 1.3
One HDMI output enabled standard, second output enabled with optional license key

1080p, 60 fps from 1740 Kbps
1080p, 30 fps from 1024 Kbps
720p, 60 fps from 832 Kbps
720p, 30 fps from 512 Kbps
4SIF/4CIF, 60 fps from 512 Kbps
4SIF/4CIF, 30 fps from 128 Kbps
SIF (352 x 240), CIF (352 x 288) from 64 Kbps
QCIF (176 x 144) from 64 Kbps
w288p from 128 Kbps
w448 from 384 Kbps
w576p from 512 Kbps

Input
HD (1920 x 1080i), HD (1920 x 1080p
WSXGA+ (1680 x 1050)
UXGA (1600 x 1200)
SXGA (1280 x 1024)
WXGA (1280 x 768)
HD (1280 x720p), XGA (1024 x 768)
SVGA (800 x 600)
Output
HD (1920 x 1080i)
HD (1920 x 1080p)
WSXGA+ (1680 x 1050)
SXGA+ (1400 x 1050)
SXGA (1280 x 1024)
HD (1280 x 720p)
XGA (1024 x 768)
VGA (640 x 480)
Content frame rate
5–60 fps (up to 1080p resolution at 60 fps)
Content Sharing
People+Content™ IP and Pano app support
VbSS content in Microsoft environments
Audio input
1 x RealPresence Group microphone array input port (supporting a total of 2 microphone arrays)
USB headset support
1 x HDCI (camera)
1 x HDMI
1 x 3.5mm stereo line-in

1 x HDMI
USB headset support
1 x 3.5mm stereo line-out

2 x USB 2.0
1 x RS-232, 8-pin mini-DIN

22 kHz bandwidth with Siren™ 22 technology, AAC-LD (TIP calls), G.719 (Live Music Mode)
14 kHz bandwidth with Siren™ 14 technology, G.722.1 Annex C
7 kHz bandwidth with G.722, G.722.1
3.4 kHz bandwidth with G.711, G.728, G.729A

Automatic gain control
Automatic noise suppression
Keyboard noise reduction
NoiseBlock™ technology
Live music mode
Instant adaptation echo cancellation
Audio error concealment
Siren™ Lost Packet Recovery technology
StereoSurround™ technology
Active Lip Synchronization

H224/H.281, H.323 Annex Q, H.225, H.245, H.241, H.239, H.243, H.460
BFCP (RFC 4582)
TIP

IPv4 and IPv6 support
1 x 10/100/1G Ethernet
Auto-MDIX
H.323 and/or SIP up to 3 Mbps
Lost Packet Recovery™ (LPR™) technology
Reconfigurable MTU size
RS232 with API support
Web Proxy support—Basic, Digest and NTLM
Simple Certificate Enrollment Protocol (SCEP)

Microsoft Lync and Skype for Business certification, including Skype for Business Online / Office 365
IBM® Sametime™ support
Zoom Meetings interoperability
BlueJeans Cloud Services Interoperability
Microsoft® Office Communications Server integration
Microsoft® ICE support

Media Encryption (H.323, SIP): AES-128, AES-256
Authenticated access to admin menus, web interface, and telnet API
H.235.6 support
FIPS 140-2 Validated Cryptography (Validation Certificate #1747)
PKI/Certificate Management:
SSL 3.0, TLS 1.0, 1.1, 1.2
Self-signed and CA-signed certificate support
CRL and OCSP-based certificate revocation checking
Network intrusion detection system
Local account password policy configuration
Security profiles
Web UI/SNMP Whitelists
Local account and login port lockout
API via Telnet and secure SSH interfaces

Pano
RealPresence® Touch™
EagleEye™ Cube camera
EagleEye™ Producer
EagleEye™ Director II
SoundStation® IP 7000 conference phone integration
SoundStructure® integration through a digital interface

Skype for Business and Lync Integration (including Skype for Business Online / Office 365)
TIP interoperability
Enhanced display license for 2nd monitor and touch monitor support
1080p license, providing up to 1080p60 for people and content

Auto sensing power supply

37VA @ 120V @ 60Hz
37VA @ 230V @ 50/60Hz
Typical BTU/h: 65

Operating temperature: 0 to 40 °C
Operating humidity: 15 to 80%
Non-operating temperature: -40 to 70 °C
Non-operating humidity (non-condensing): 5 to 95%
Maximum altitude: 10,000 ft

RealPresence Group 310 base box
11.3” H x 1.2” W x 4.8” D
2.45 lbs

One-year return to factory parts and labor
